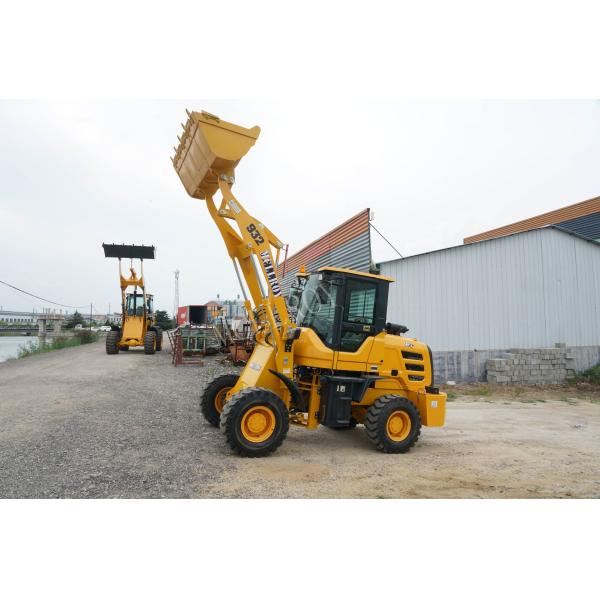

    Garden Front Hand 2 Ton Wheel Loader Automatic Transmission

    Ask Lasest Price
    Brand Name : MCLLROY
    Model Number : MCL932 ZL932
    Certification : CE,ISO9001
    Price : $ 4000-6000 /Unit
    Payment Terms : 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
    Supply Ability : 100 sets / month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Garden Front Hand 2 Ton Wheel Loader Automatic Transmission

    Front Hand Loader 2 Ton Wheel Loader Automatic Transmission


    1. Products Description

    MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.

    For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.


    2. Specification

    MODELMCL 932/ZL 932Metric Units
    ENGINEEngine ModelYun Nei 490 Supercharged
    RPM2400
    Rated Power58 kW
    EmissionsEU Stage II
    WEIGHTSOperating Weight3670 kg
    Rated Load1800 kg
    BUCKETSBucket Capacities0.6-1.0 m³
    TRANSMISSIONMax. Travel Speed28 km/h
    Gear BoxCVT
    265 torque converter
    AxleSmall hub
    Axle Base2210 mm
    BrakeDisc Brake
    HYDRAULIC SYSTEMHydraulic Cycle time - lift≤ 7 s
    DIMENSIONS(APPROXIMATE)Min. Ground Clearance290 mm
    Wheel Base1490 mm
    Reach at Max.Dump Height3200 mm
    Dump Reach≤ 650 mm
    Overall Length - With Bucket5300 mm
    Overall Width1820 mm
    Overall Height2670 mm

    3. Details and Advantages

    The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

    1) Tire:38% Rubber content tire,Wider off-road tire

    2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.

    3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab

    4) The brake caliper is exposed to facilitate servicing.

    5) The bucket with high wear-resistant material even is used for stone.


    4.Certification

    Product quality determines customer satisfaction thus the life span of a company.

    MCLLROY not only acknowledged by the ISO9001:2000 international quality control system

    and ISO 9001:2015 quality management system certification,but acquired the CE certificate.

    MCLLROY CE certificate is for wheel loader, backhoe loader,excavator ,mixer truck .etc.
